Name: Battery Monitor Meter with,LCD Display - Hartley Solar Innovation
SKU: B07W7XXKVF
Price: 25.00 USD
Availability: InStock

Description

Power Source: Battery Powered
Style: Industrial
Color: 0-200V Voltmeter Ammeter
Item Weight: 0.25 Kilograms

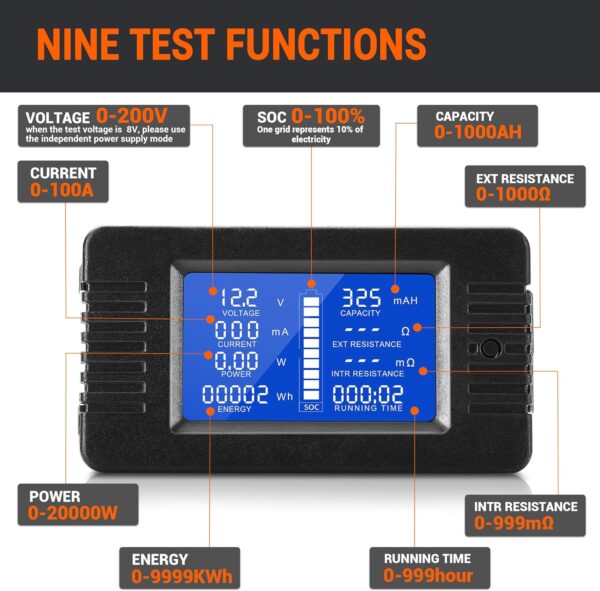

【9 in 1 Battery Monitor Meter】– 1 interface displays 9 kinds of measurement parameters at the same time, including Voltage0-200V, Current0-100A, Power0-20000W, Impedance 0-1000Ω, Internal Resistance0-999mΩ, Capacity0-1000AH, SOC, Energy Consumption0-9999kWh and Running Time0-999h.

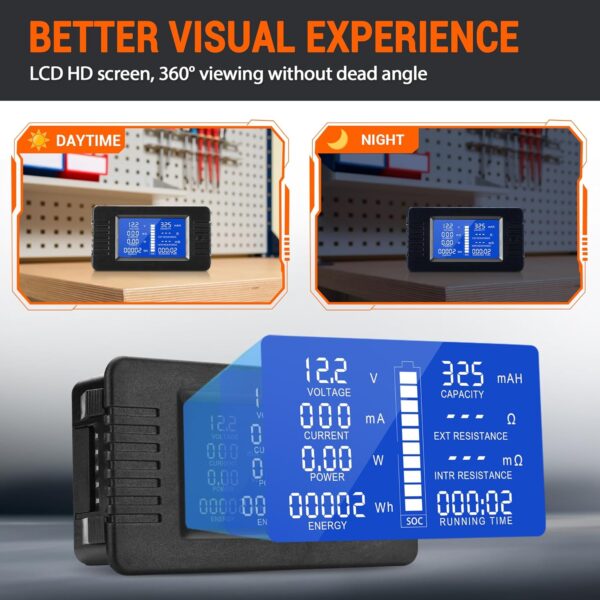

【Better Visual Experience】– LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night. Through battery monitor meter, you can better monitor the real-time data of your battery and use it with more peace of mind.

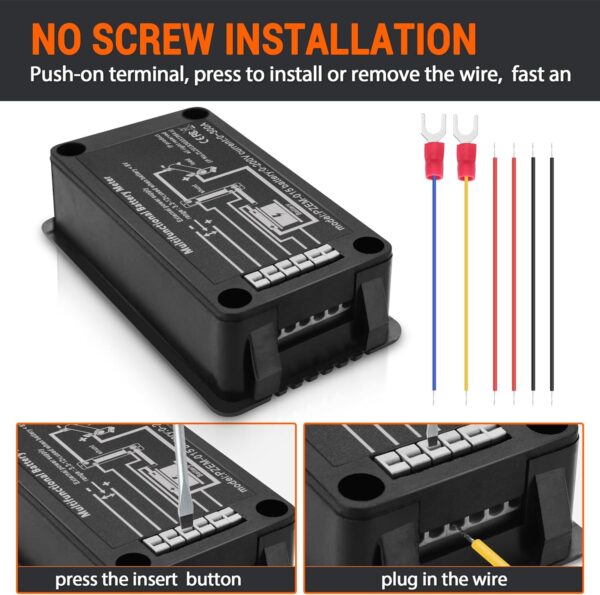

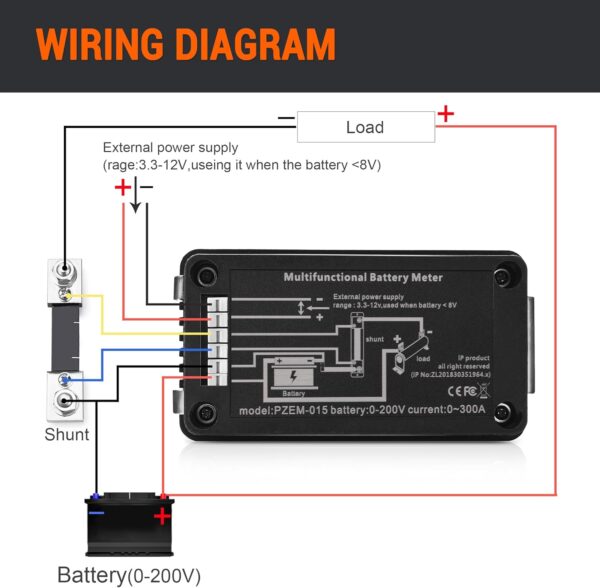

【No Screw Installation】– LCD display digital current multimeter adopts the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws.（Pls read the instructions carefully and strictly follow the wiring diagram before installation.）

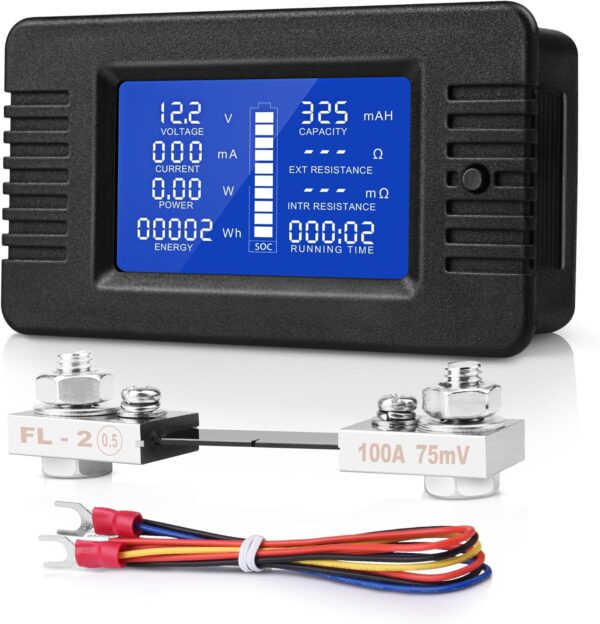

【Accurate Measurement】– 100A DC battery monitor meter is controlled by a high precision chip,efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%.
【Wide Application】– Battery monitor meter wildly used in the automobile, solar system, industrial assembly line, trailer,RV&boat ect.
【Warm Service】– MNJ Motor provides you 30-Days Money Back/ Replacement and 24 months Warranty, Within 4 hours Response.

great product

very good product.
go for it.

Essential bit of kit for Leisure Batteries

Looks good and is surprisingly accurate 😊 decided to fit a monitor as I accidentally drained my nearly new battery. So now at the touch of a button I can see the state of charge, vaults, drain etc and will therefore know if my built in charger isn't charging. If your van hasn't got one I'd recommend you get one of these

Pas de support pour le Shunt

Commandé un avec support pour le shunt , j ai retourné celui-ci.

Perfect for trolling motor battery

I am using it for a dingy with 55 lb trolling motor and a 50 Ah LiFePo4 battery, and it is perfect for this role.

1. all info you need on one screen - voltage, current, Ah/Wh, remailing capacity. Having battery internal resistance and load resistance computed is also very useful.
2. it memorizes accumulated values (Ah/Wh) when powered off - no need to use an optional backup source. You manually reset these values after fully charging your battery.
3. it also measures all parameters when charging (charger connected to "load" terminals) - so you have exact Ah/Wh pumped into the battery even when your charger doesn't show it.

Excellent accuracy, incredible value for the money

I purchased the 100amp version and was pleasantly surprised by the accuracy - even when running a 0.5amp load.. Accuracy was confirmed for current and voltage readings with calibrated multimeters.
Easy setup, the diagrams in the instructions are very clear and are conveniently reproduced on the back of the meter itself. The meter frame has snap fit tabs for mounting in a panel, cabinet or case.
The interface for setting the meter to the correct voltage range for your batteries (which you must do to get accurate state of charge info), clearing readings, etc is a little fiddly and inconvenient, but works just fine.
Keep in mind this is a meter only, it will only take measurements of how much power passes through it, it isn't smart enough to track charge/discharge, and will not do anything to prevent over charge or overdischarge of your batteries.
